LC Ceiling Style 7W LP-PVC11-25

LC Ceiling line is easy to install on ceilings with it’s smart designed mounting system. It offers unparalleled energy and maintenance savings compared to T5 and T8 solutions and maximum efficiency.

Applications:

Offices
Foyers
Conference rooms
Corridors, entrances, stairwells

SKU: 51103

Category: LC Ceiling Style

Description
Downloads

Features

Luminous Flux up to	920 lm
Efficiency up to	130 lm/W
Luminaire Input Power	7 W
CRI	> 80
LED	Samsung LM561B
Input Current AC	0.030 A
Working Voltage AC	220 – 240 V
Type of protection	IP20

Life	100 000 hours
Power Factor – Cos(φ)	≥ 0.9
Operating Temperature	-20 to +40 C°
Housing	Polyvinyl chloride
Diffuser	PMMA

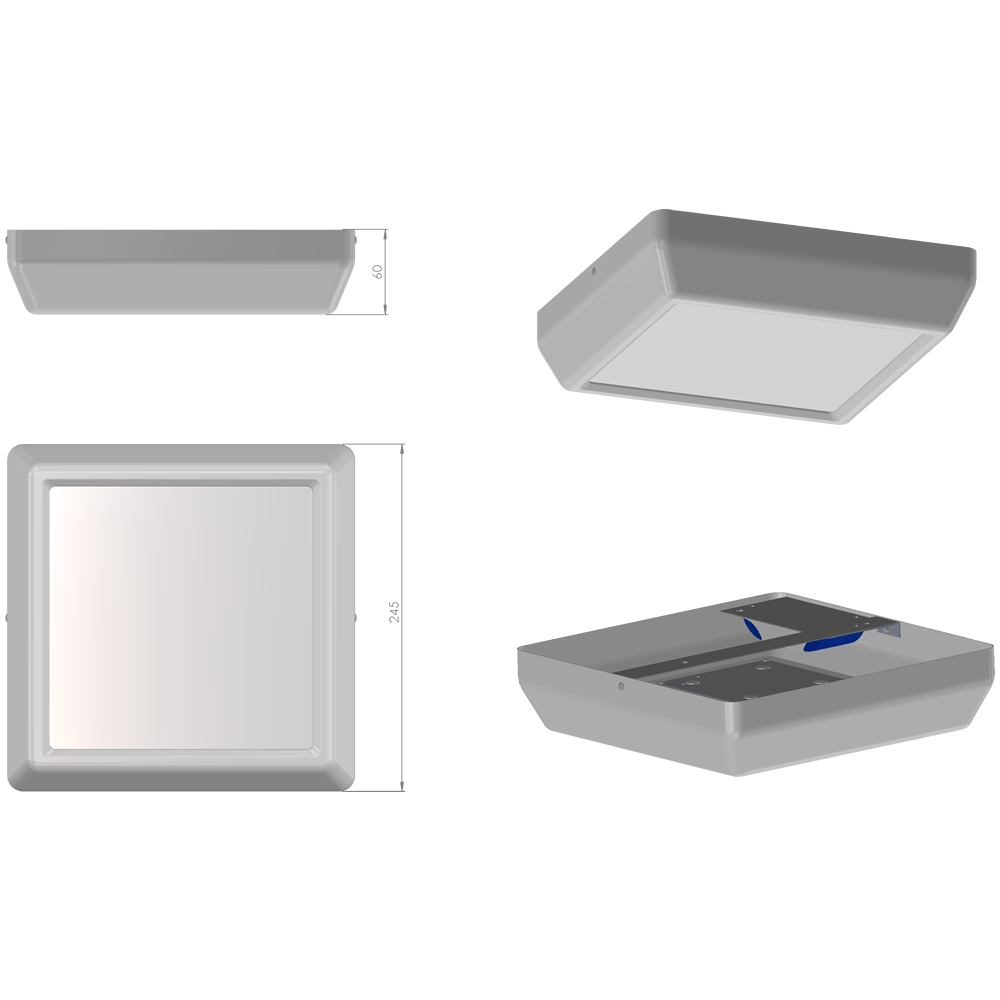

Dimensions L x W x H	245 x 245 x 60 mm
Weight	0.5 kg

LC Ceiling Style 7W model	Article number	Efficiency	Luminous Flux	CCT	Dimmable
LP-PVC11-25	51131582	117 Lm/W	830 Lm	3000 K	NO
LP-PVC11-25	51141583	123 Lm/W	880 Lm	4000 K	NO
LP-PVC11-25	51151584	130 Lm/W	920 Lm	5000 K	NO
LP-PVC11-25 Phase Cut	51132585	117 Lm/W	830 Lm	3000 K	YES – to 10%
LP-PVC11-25 Phase Cut	51142586	123 Lm/W	880 Lm	4000 K	YES – to 10%
LP-PVC11-25 Phase Cut	51152587	130 Lm/W	920 Lm	5000 K	YES – to 10%

LC Ceiling Style 7W model	Article number	LDT files	CE	Protocols
LP-PVC11-25	51131582	LDT (712.00 B)	CE(145.98 KB)	Protocol (2.79 MB)
LP-PVC11-25	51141583	LDT (716.00 B)	CE(145.98 KB)	Protocol (2.79 MB)
LP-PVC11-25	51151584	LDT (716.00 B)	CE(145.98 KB)	Protocol (2.79 MB)
LP-PVC11-25 Phase Cut	51132585	–	CE(182.36 KB)	Protocol (2.79 MB)
LP-PVC11-25 Phase Cut	51142586	–	CE(182.36 KB)	Protocol (2.79 MB)
LP-PVC11-25 Phase Cut	51152587	–	CE(182.36 KB)	Protocol (2.79 MB)
