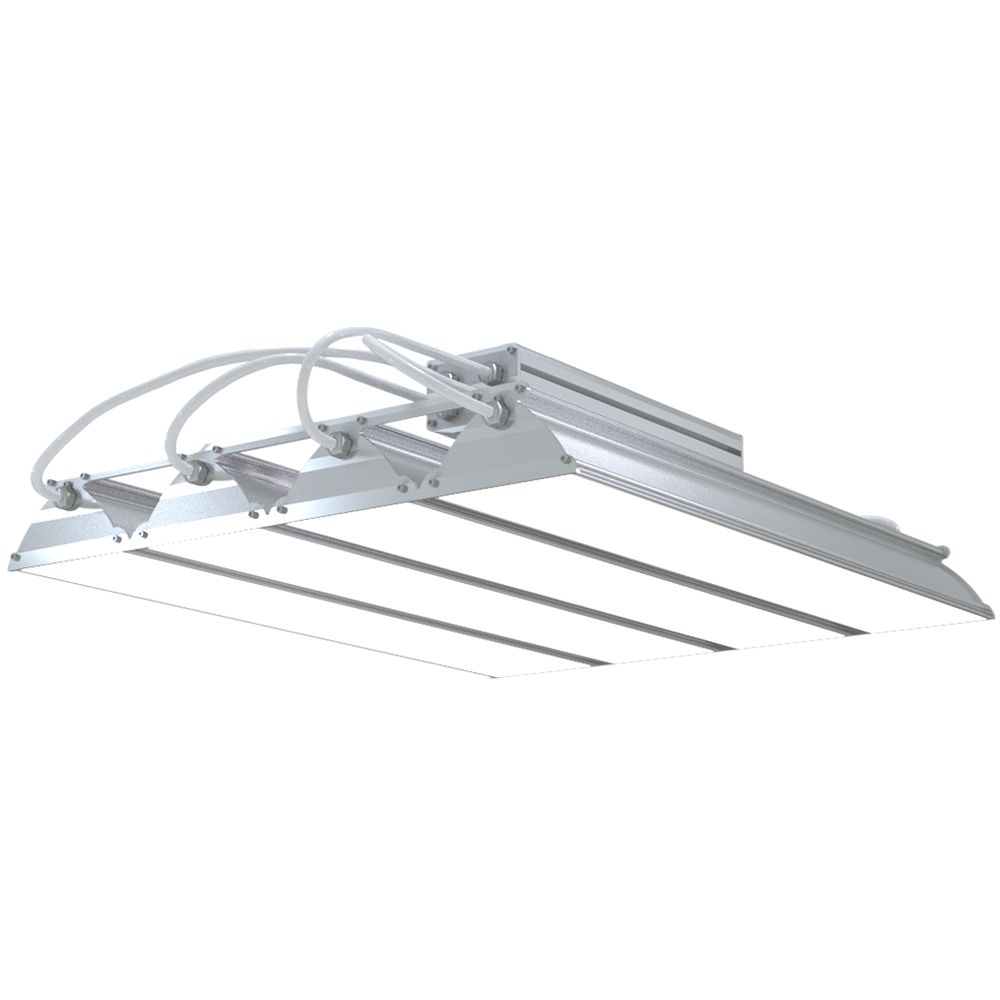

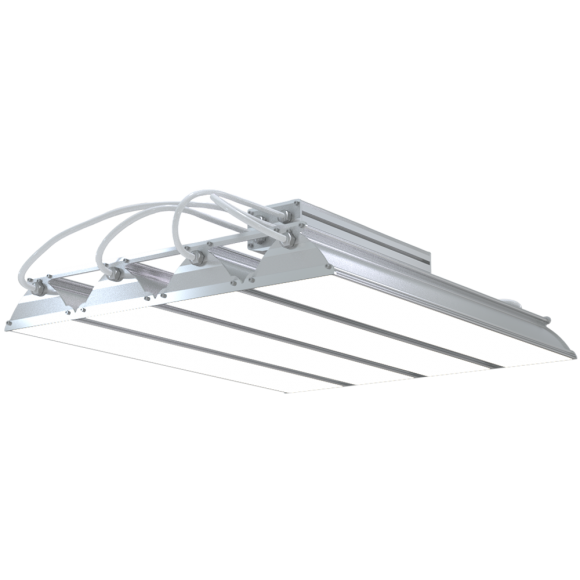

Home High Bay LED Luminaires L5 High Bay Style 155W LP-L5-4xP60-144
l5-4xp60

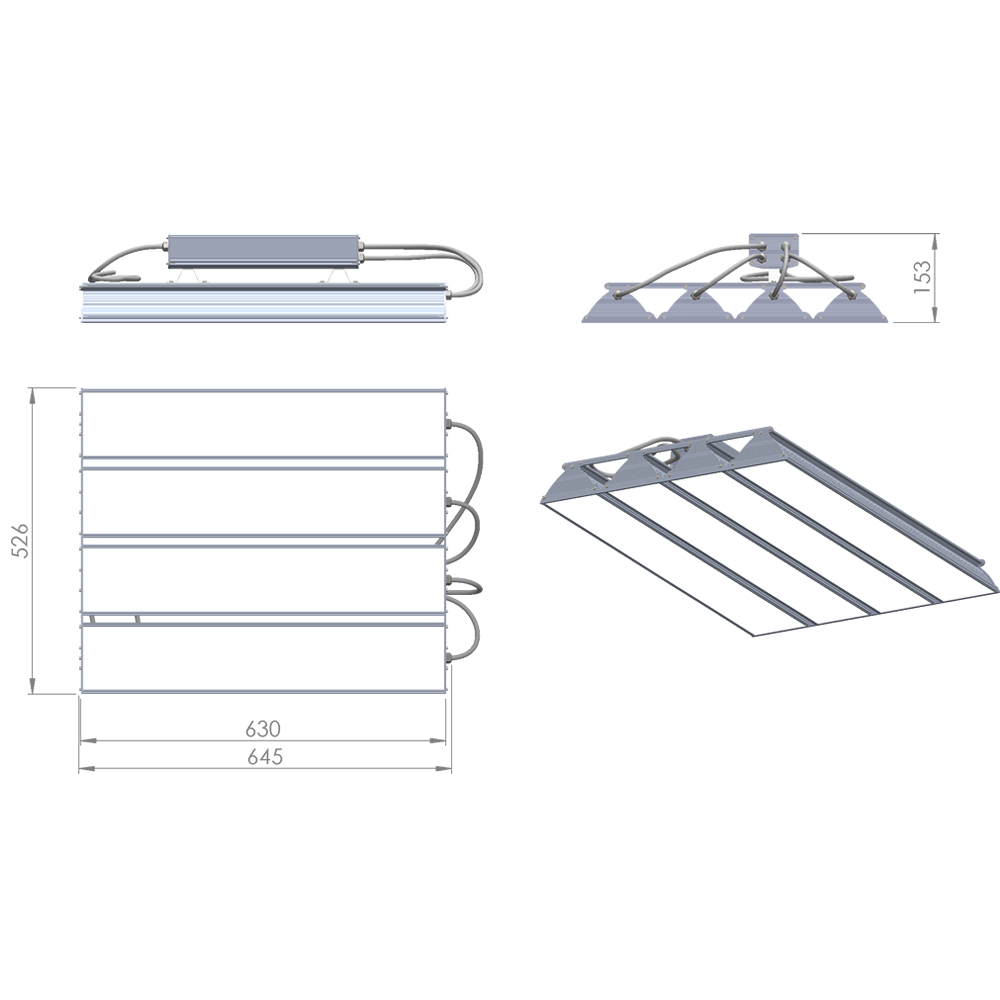

  • l5-4xp60drawing

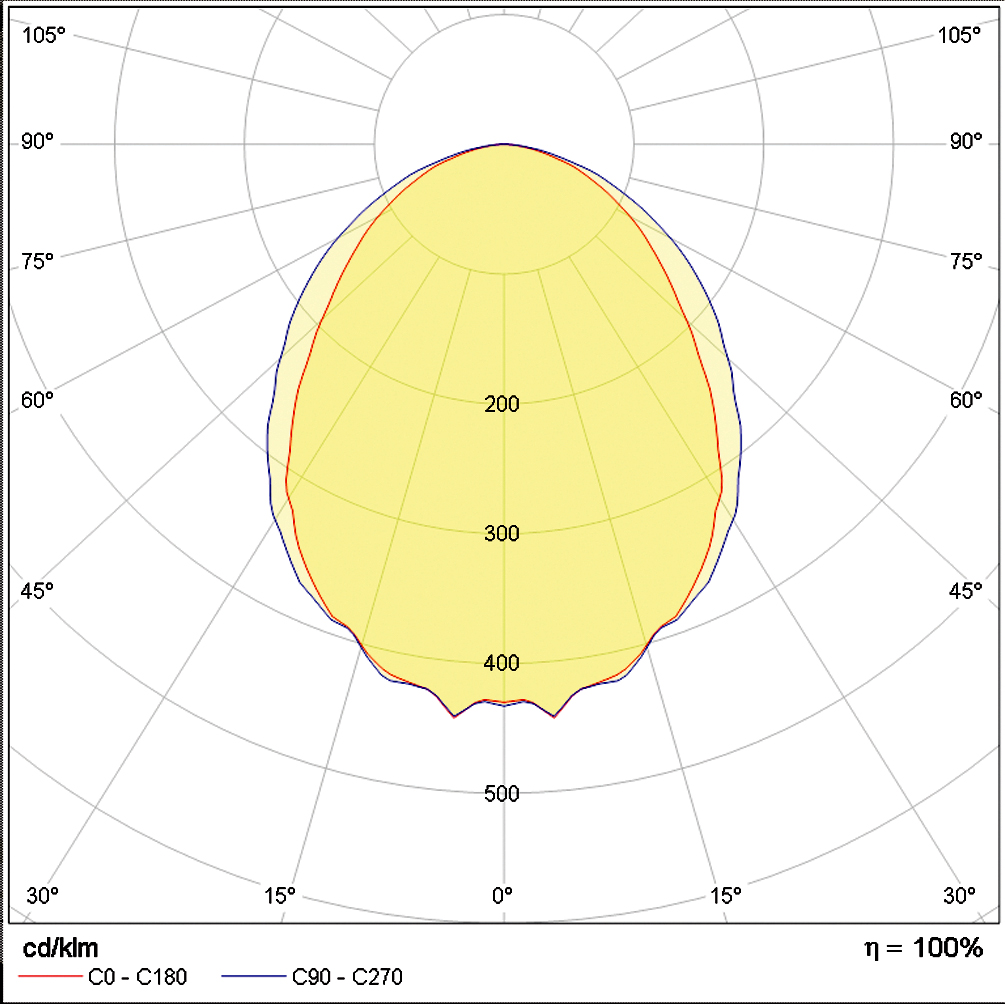

  • l5_hb_diag
  • L5 High Bay Style 155W LP-L5-4xP60-144

    High Bay Style is specially designed for easy and convenient replacement of the old high bay luminaires with Metal Halide, High-pressure sodium and Mercury lamps.
    A2PLUS

    Applications:

    • Retail shops and supermarkets
    • Production facilities
    • Warehouses
    • Public buildings

    SKU: 56502

    Features

    Luminous Flux up to 20430 lm
    Efficiency up to 132 lm/W
    Luminaire Input Power 155 W
    CRI > 80
    LED Samsung LM561B
    Input Current AC 0.695 A
    Working Voltage AC 220 – 240 V
    Type of protection IP54
    Life 80 000 hours
    Power Factor – Cos(φ) ≥ 0.9
    Operating Temperature -30 to +40 C°
    Housing Aluminium
    Diffuser PMMA
    Dimensions L x W x H 645 x 526 x 153 mm
    Weight 6.4 kg
    L5 High Bay Style 155W
    model
    Article number Efficiency Luminous Flux CCT Dimmable
    Download Specifications LP-L5-4XP60-144 565411448 LP-L5-4XP60-144 565411448 125 Lm/W 19370 Lm 4000 K NO
    Download Specifications LP-L5-4XP60-144 565511449 LP-L5-4XP60-144 565511449 132 Lm/W 20430 Lm 5000 K NO
    L5 High Bay Style 155W
    model
    Article number LDT files Protocols
    Download Specifications LP-L5-4XP60-144 565411448 LP-L5-4XP60-144 565411448 LDT (3.46 KB) Protocol (2.56 MB)
    Download Specifications LP-L5-4XP60-144 565511449 LP-L5-4XP60-144 565511449 LDT (3.47 KB) Protocol (2.56 MB)
