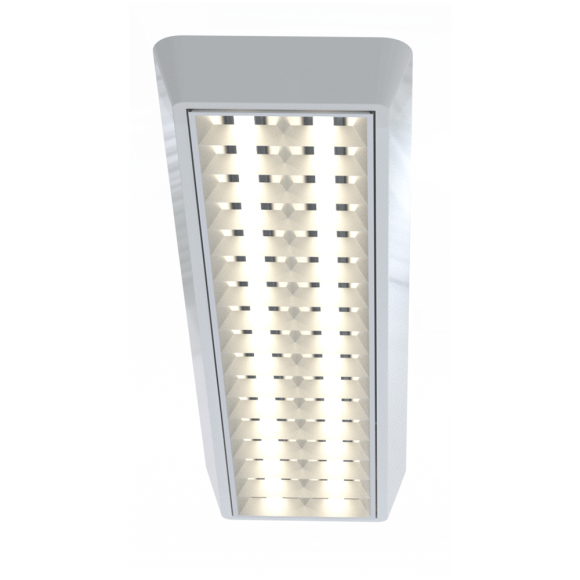

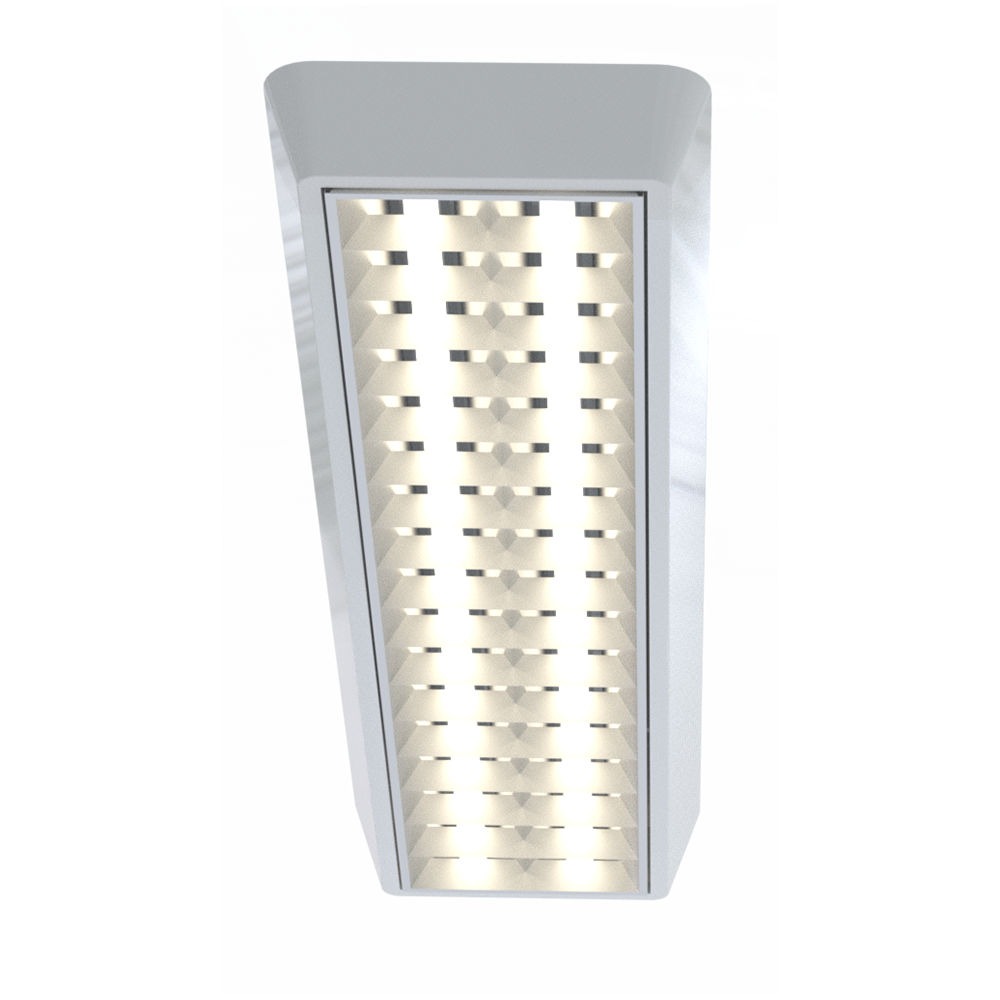

L3 Ceiling Style 36W LP-L3-30×120 OM

L3 Ceiling style is easy to install on ceilings with it’s conventional fluorescent-like housing. It offers unparalleled energy cost savings compared to T5 and T8 solutions and maximum efficiency.

Applications:

Offices
Foyers
Conference rooms
Corridors, entrances, stairwells

SKU: 54204

Category: L3 Ceiling Style

Description
Downloads

Features

Luminous Flux up to	4320 lm
Efficiency up to	120 lm/W
Luminaire Input Power	36 W
CRI	> 80
LED	Samsung LM561B
Input Current AC	0.157 A
Working Voltage AC	220 – 240 V
Type of protection	IP20

Life	80 000 hours
Power Factor – Cos(φ)	≥ 0.9
Operating Temperature	-20 to +40 C°
Housing	Steel Sheet
Diffuser	Polystyrol

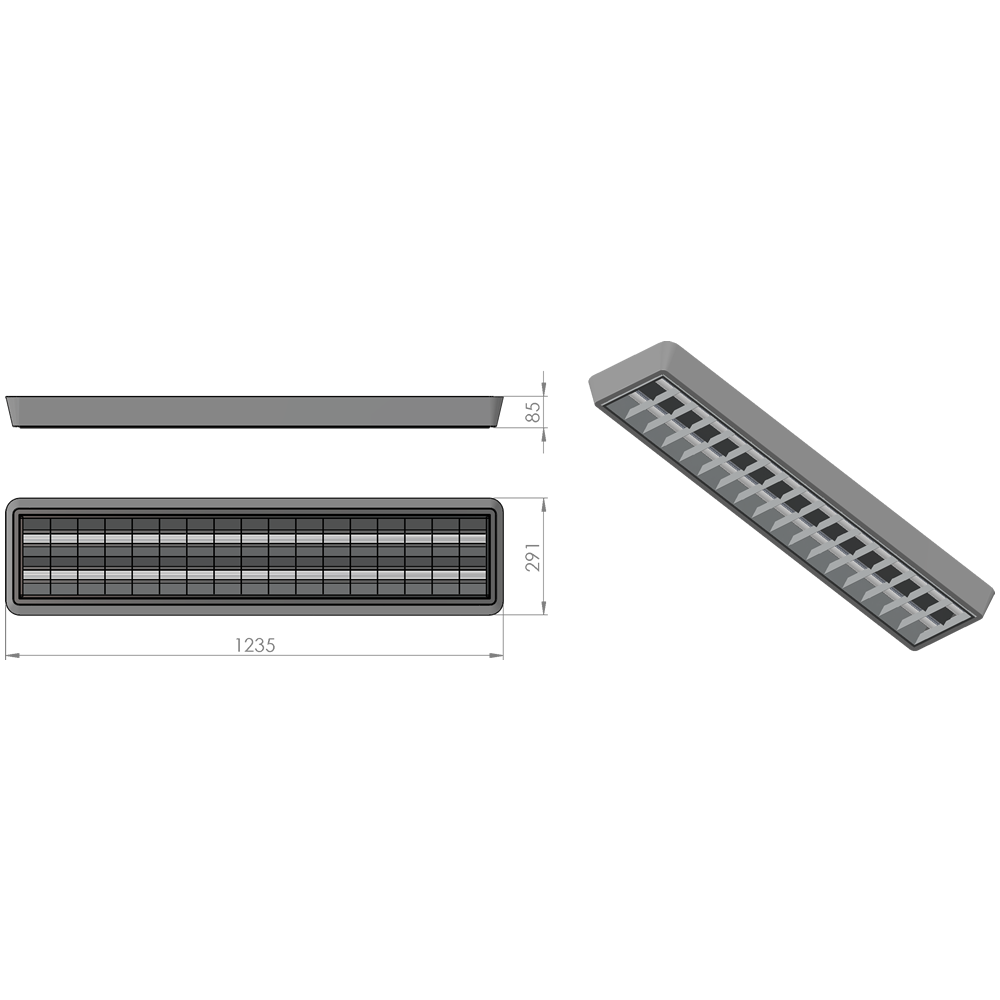

Dimensions L x W x H	1235 x 291 x 85 mm

L3 Ceiling Style 36W model	Article number	Efficiency	Luminous Flux	CCT	Dimmable
LP-L3-30X120 OM	542311146	108 Lm/W	3880 Lm	3000 K	NO
LP-L3-30X120 OM	542411147	114 Lm/W	4100 Lm	4000 K	NO
LP-L3-30X120 OM	542511148	120 Lm/W	4320 Lm	5000 K	NO
LP-L3-30X120 OM DALI	542331149	108 Lm/W	3880 Lm	3000 K	YES – to 1%
LP-L3-30X120 OM DALI	542431150	114 Lm/W	4100 Lm	4000 K	YES – to 1%
LP-L3-30X120 OM DALI	542531151	120 Lm/W	4320 Lm	5000 K	YES – to 1%

L3 Ceiling Style 36W model	Article number	LDT files	Protocols
LP-L3-30X120 OM	542311146	LDT (3.40 KB)	Protocol (32.20 MB)
LP-L3-30X120 OM	542411147	LDT (3.40 KB)	Protocol (32.20 MB)
LP-L3-30X120 OM	542511148	LDT (3.40 KB)	Protocol (32.20 MB)
LP-L3-30X120 OM DALI	542331149	LDT (3.42 KB)	Protocol (32.20 MB)
LP-L3-30X120 OM DALI	542431150	LDT (3.42 KB)	Protocol (32.20 MB)
LP-L3-30X120 OM DALI	542531151	LDT (3.42 KB)	Protocol (32.20 MB)
