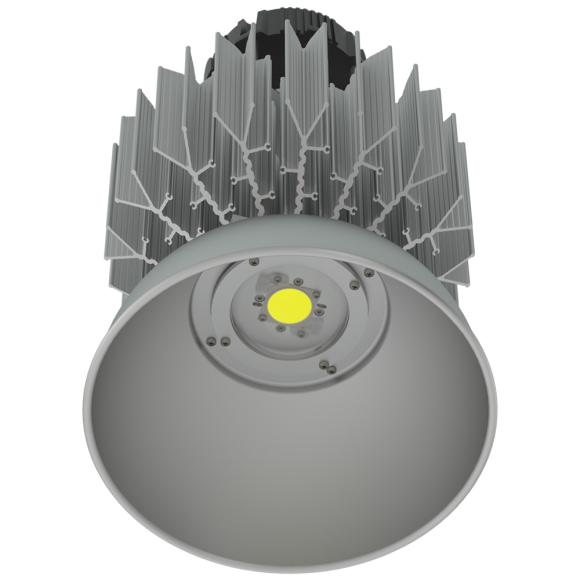

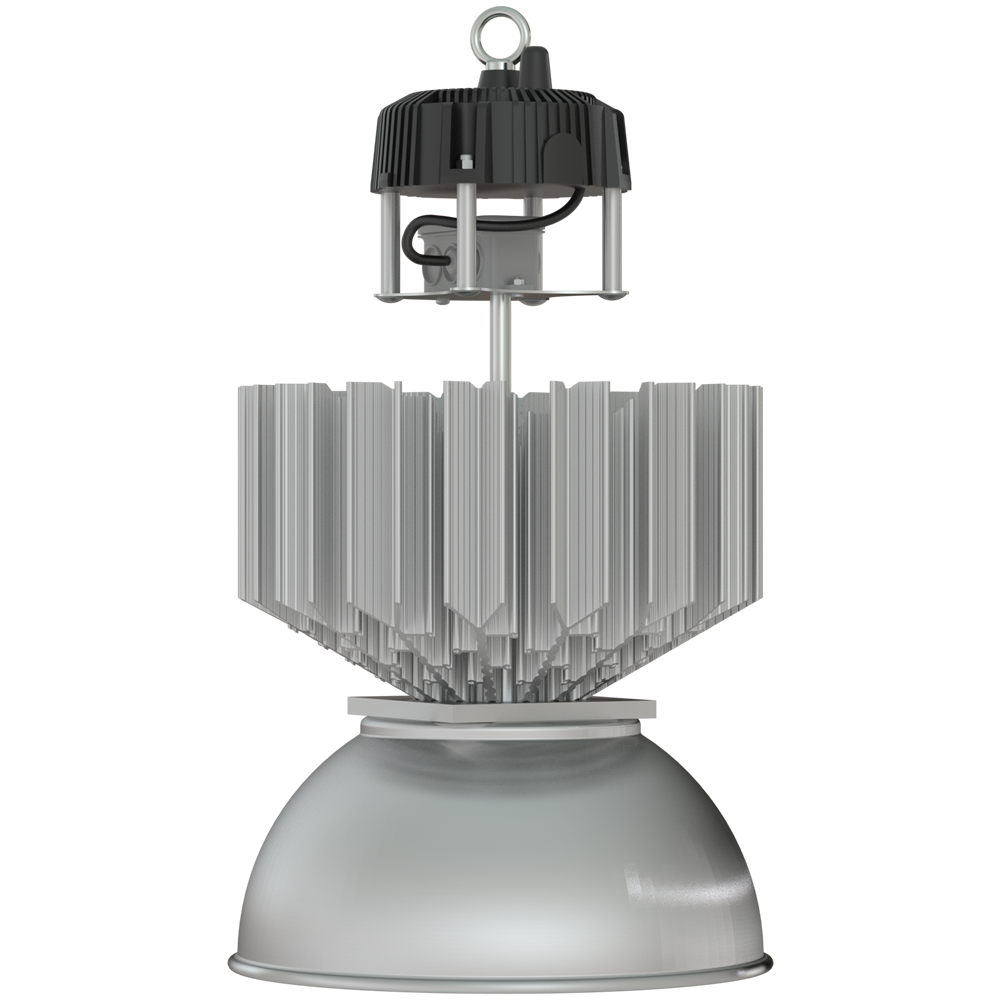

Home High Bay LED Luminaires HB-150 Style 150W LP-HB-150
hb3
  • hb2
  • hb150
  • HB-150 Style 150W LP-HB-150

    High Bay Style is specially designed for easy and convenient replacement of the old high bay luminaires with Metal Halide, High-pressure sodium and Mercury lamps.
    A1PLUS

    Applications:

    • Retail shops and supermarkets
    • Production facilities
    • Warehouses
    • Public buildings

    SKU: 56504

    Features

    Luminous Flux up to 16500 lm
    Efficiency up to 110 lm/W
    Luminaire Input Power 150 W
    CRI > 80
    LED Cree CXA3050 COB
    Input Current AC 0.660 A
    Working Voltage AC 220 – 240 V
    Type of protection IP54
    Life 80 000 hours
    Power Factor – Cos(φ) ≥ 0.9
    Operating Temperature -20 to +40 C°
    Housing Aluminium
    Dimensions L x W x H Ø300 x 500 mm
    Weight 9.1 kg
    HB-150 Style 150W
    model
    Article number Efficiency Luminous Flux CCT Dimmable
    Download Specifications LP-HB-150-1 565511666 LP-HB-150-1 565511666 100 Lm/W 15000 Lm 4000 K NO
    Download Specifications LP-HB-150-4 565511667 LP-HB-150-4 565511667 110 Lm/W 16500 Lm 5000 K NO
    HB-150 Style 150W
    model
    Article number LDT files Protocols
    Download Specifications LP-HB-150-1 565511666 LP-HB-150-1 565511666 LDT (760.00 B) Protocol (3.12 MB)
    Download Specifications LP-HB-150-4 565511667 LP-HB-150-4 565511667 LDT (3.07 KB) Protocol (3.49 MB)
